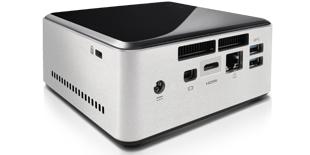

Lilliput D34010WYKH Contact Us @
Bookmark and Share
Intel® Visual BIOS
Two SO-DIMM slots supporting up to 16 GB of 1600/1333 MHz 1.35V DDR3L memory
Windows* 8.1 and 8 logo
Compatible with Linux*
VESA mount bracket (75 x 75mm and 100 x 100mm compatible)
Half-length PCIe* mini-card slot
Low-acoustics active cooling design
Kensington lock support
3-year advanced warranty replacement
19V, 65W DC-DC power adapter

Processor/Cache
Processor 4th generation Intel® Core™ i3-4010U processor
System Memory
Memory Capacity Two SO-DIMM slots supporting up to 16 GB of 1600/1333 MHz 1.35V DDR3L memory
Expansion Slots
PCI-Express 1 x PCIe Mini Card Slot (Half Length), 1 x PCIe Mini Card Slot (Full Length)
Integrated On-Board
Audio Intel® HD Audio via Mini HDMI 1.4a, Mini Display Port 1.2 output supporting 8 channel(7.1) digital audio, Intel HD Audio via stereo analog audio jack (microphone in/headphone out/speaker out)
Graphics Intel® HD Graphics 4400,One Mini Display Port 1.2 supporting ultra-high definition 4K displays and multiple monitor functionality, One Mini HDMI 1.4a port
Storage Internal support for 2.5-inch HDD or SSD
Drive bays
Peripheral Connectivity Four super high-speed USB 3.0 ports (two back panel ports and two front ports)
Networking
Networking Integrated Intel® PRO 10/100/1000 Network Connection, Wireless antennae (integrated into the chassis)
Power Supply
Power Supply 19V, 65W DC-DC power adapter
Form Factor
Form Factor Intel Mini ITX
Dimensions: 116.6mm x 112mm x 51.5mm

Specifications subject to change without notice. Picture used for representation purpose only and the actual product may differ in looks All other brands and names are the property of their respective owners
