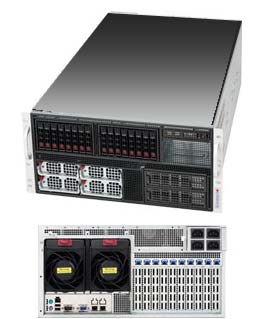

Camarero OS100T3R1-524R Contact Us @
Product Overview Configurator
Bookmark and Share
• Highest Density 5U 8-Way Server; Super-High Computing Performance
• 8x Intel® Xeon® 8-core 7500^ series and 10-core E7-8800 family processors supported
• 64x DIMM slots support up to 2TB Reg. DDR3 ECC SDRAM**
• 4x PCI-E 2.0 x16 + 2x PCI-E 2.0 x8 (in x16 slot) or 10x PCI-E 2.0 x8 full-height full-length slots
• Dual Gigabit Ethernet LAN ports
• 16x 2.5" HDDs and 2x 5.25" devices; up to 24x 2.5" HDDs with optional HDD module***
• 6x SATA2 ports onboard
• Onboard BMC supports IPMI 2.0 + KVM with dedicated LAN
• 6x 9cm Hot-swap cooling fans
• 2800W hot-swap (2+2) redundant high-efficiency power supplies Gold Level Certified

Processor/Cache
Processor
8x Intel® Xeon® 8-core 7500* series and 10-core E7-8800 family processors supported
Chipset
Chipset 2x Intel® 7500 (Boxboro-EX) chipset
ICH10R
System Memory
Memory Capacity 64x 240-pin DIMM sockets Supports up to 1024 GB DDR3 ECC reg. Memory
Expansion Slots
PCI-Express 4x PCI-E 2.0 x16 + 2x PCI-E 2.0 x8 (in x16 slot) or 10x PCI-E 2.0 x8 full-height full-length slots
Integrated On-Board
SATA Intel ICH10R SATA 3.0Gbps Controller RAID 0, 1, 5, 10 support(Win) , RAID 0, 1, 10 support (Linux)
LAN 3x RJ45 LAN ports (1 for IPMI)
Add-on Options
RAID Optional
Optical Drive None
Drive bays
HDD bays 16x 2.5" HDDs HDD Bays
Peripheral Bays 2x 5.25" drives
Power Supply
Power Supply 2800W hot-swap (2+2) redundant high-efficiency power supplies Gold Level Certified power supply
Cooling System
Cooling System 4x Hot-swap cooling fans
2X Hot-swap rear exhust fans
Form Factor
Form Factor 5U Rackmountable
Height 8.6" (219mm), Width : 17.2" (437mm),Depth 30" (762mm)

Specifications subject to change without notice. Picture used for representation purpose only and the actual product may differ in looks All other brands and names are the property of their respective owners
