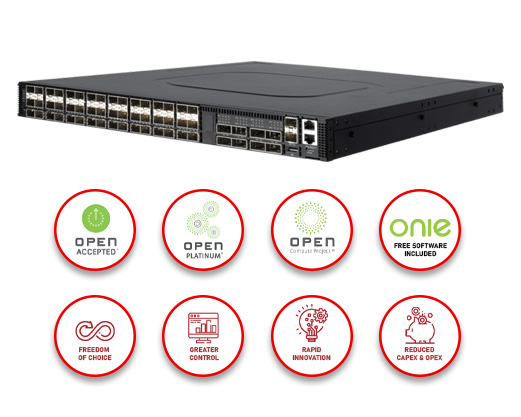

NXT-F48C810R

Switch Highlights

  • 48 x SFP28 + 8 x QSFP28 switch ports, each QSFP28 supporting 1 x 100 GbE or 1 x 40 GbE, or via breakout cables, 2 x 50 GbE, 4 x 25 GbE, or 4 x 10 GbE.
  • Deploy as Top-of-Rack switch supporting 10 or 25 GbE to servers, with 40 GbE, 50 GbE, or 100 GbE uplinks
  • Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commercial NOS offerings.
  • Cost-effective, open network switch for data center fabric.
  • Layer 2 or Layer 3 forwarding of 2 Tbps.
  • All ports on front; PSUs and fans accessible from rear.
  • 5+1 redundant, hot-swappable fan modules.
  • With SONiC open-source network software(Optional).
  • With TPM 2.0 feature for security enhancements.
  • With secure boot feature for security enhancements.
  • Based on Broadcom BCM56873 (Trident III).
  • Jumbo frames support up to 9K Bytes.
  • 32 MB integrated packet buffer.
  • 4L VLAN IDs
  • 1U rack-mountable
Features Detailed Specification
Form Factor 1U Rack Mountable
Switch Ports
  • - 48 x 25 GbE (SFP28)
  • - 8 x 100 GbE (QSFP28)
Management Port
  • - 1 x RJ-45 100/1000 BASE-T
  • - 2x10G (SFP+)
Console Port 1 x RJ-45
USB Port 1 x USB Type A
CPU Intel® Xeon® D-1518 processor quad-core 2.2 GHz
System Memory DDR4: SO-DIMM 8 GB x 2
Preloaded Software Installer Open Network Install Environment (ONIE)
Netweb SONiC On Demand
Other NOS options
  • - Open source options
  • - Commercial NOS offerings
LEDs:
  • - SFP28 Port LEDs: Link Status, Activity, Rate
  • - QSFP28 Port LEDs: Link Status, Activity, Rate
  • - Ethernet Management Port LED: Link Status, Activity
  • - System LEDs: Diagnostic, Locator, PSU and Fan Status
TPM Version TPM 2.0 on board
Power Supply Unit
  • - Redundant
  • - Load-sharing
  • - Hot-swappable AC
  • - Rating: 650 Watts
Environmental Specifications
  • - Operating Temperature: 0°C to 45°C (32°F to 113°F)
  • - Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Packaging Size (W x D x H) 43.84 x 53.6 x 4.35 cm (17.26 x 21.1 x 1.71 in.)
Weight (with two PSUs) 10Kg
Mounting Rail kits included
