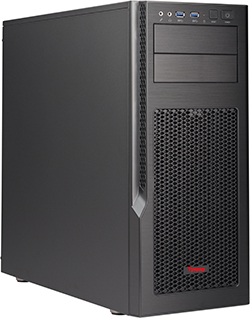

Camarero SSI100F0R-310 Contact Us @
Product Overview Configurator
Bookmark and Share
  Workstation
• "10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor, 11th Generation Intel® Core™ i5/i7/i9 Processors, Intel® Xeon® W-1200 Processors, Intel® Xeon® W-1300 Processors Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP"
• Intel® W580
• 2 PCI-E 4.0 x16 slots (16/NA or 8/8)2 PCI-E 3.0 x1, 1 - 5V PCI 32bit, M.2 Interface: 1 PCI-E 4.0 x4 and 2 PCI-E 3.0 x4, RAID 0 & 1, M.2 Form Factor: 2280/22110, M.2 Key: M-Key, RAID 5 only applied for INTEL Storage Device
• Single LAN with Intel® Ethernet i225V, Single LAN with Intel® PHY I219LM LAN controller for AMT/vPro
• 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots
• Intel® W580 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
• 1 DP 1.4a port, 1 HDMI 2.0b port, 1 DVI - D port
• 4x 2.5"" fixed drive bay, 6x 3.5"" fixed drive bay
• 1x 12cm rear exhaust fan(s), 2x 12cm front cooling fan(s)
• 750W 80PLUS Gold Fully-Modular Power Supply

Processor/Cache
Processor
"10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor, 11th Generation Intel® Core™ i5/i7/i9 Processors, Intel® Xeon® W-1200 Processors, Intel® Xeon® W-1300 Processors Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP"
Chipset
Chipset Intel® W580
System Memory
Memory Capacity 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots
Expansion Slots
PCI-Express 2 PCI-E 4.0 x16 slots (16/NA or 8/8)2 PCI-E 3.0 x1, 1 - 5V PCI 32bit, M.2 Interface: 1 PCI-E 4.0 x4 and 2 PCI-E 3.0 x4, RAID 0 & 1, M.2 Form Factor: 2280/22110, M.2 Key: M-Key, RAID 5 only applied for INTEL Storage Device
Integrated On-Board
SATA Intel® W580 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
LAN 1 RJ45 Gigabit Ethernet LAN ports, 1 RJ45 2.5 Gigabit Ethernet LAN port
Add-on Options
Raid Card Optional
Optical Drive Optional
Front Panel
LED's Power status LED, HDD activity LED
Buttons Power On/Off button, System Reset button
Drive bays
HDD Bays "4x 2.5"" fixed drive bay, 6x 3.5"" fixed drive bay "
Peripheral Drives 2x standard 5.25"" drive bay
Power Supply
Power Supply 750W 80PLUS Gold Fully-Modular Power Supply
Cooling System
Cooling System "1x 12cm rear exhaust fan(s), 2x 12cm front cooling fan(s) "
Form Factor
Form Factor Mid-Tower
Dimensions: Height : 18.1"" (460 mm), Width : 7.9"" (200 mm), Depth : 19.4"" (493 mm)

Specifications subject to change without notice. Picture used for representation purpose only and the actual product may differ in looks All other brands and names are the property of their respective owners
