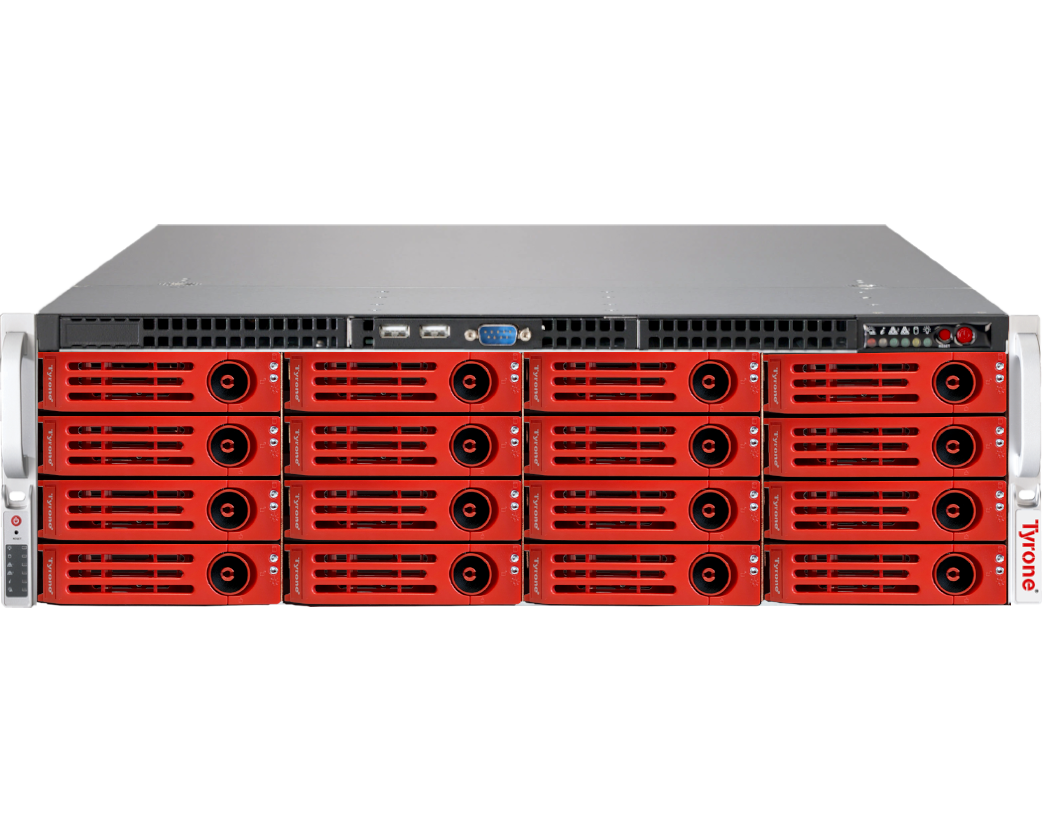

The era of having multiple units for different storage needs is passing, as diverse storage products prevent optimum utilization and can be difficult to manage. VERTA series from Tyrone Systems, consolidates all your storage requirements

  • Single Controller.
  • 3U JBOD Chassis
  • 16x3.5" hot-swappable HDDs bays
  • SAS Drive Interface.
  • SAS/SATA LFF/SFF HDDs/SSDs Supported Drive.
  • 1000W(1+1) 96% efficient Titanium level Power Supply.
Features Detailed Specification
Form Factor 3 JBOD chassis
Controller Single Controller
Bays 16 x 3.5" hot-swappable HDDs bays
Drive Interface SAS
Supported Drives SAS/SATA LFF/SFF HDDs/SSDs
System Cooling (per node) 5 hot-plug redundant cooling fans
Environmental Specifications Operating temp : 5ºC ~-35ºC / non Operating temp : -40ºC~ 70ºC / Operating relative humidity : 8%~90%
Packaging Size (W x D x H) 26.6" (676 mm) x 13" (330 mm) x 39.9" (1013 mm)
Weight (without HDDs) 26 KG
Power Supply 1000W(1+1) 96% efficient Titanium level Power Supply.
Mounting Standard : 28" slide rail
