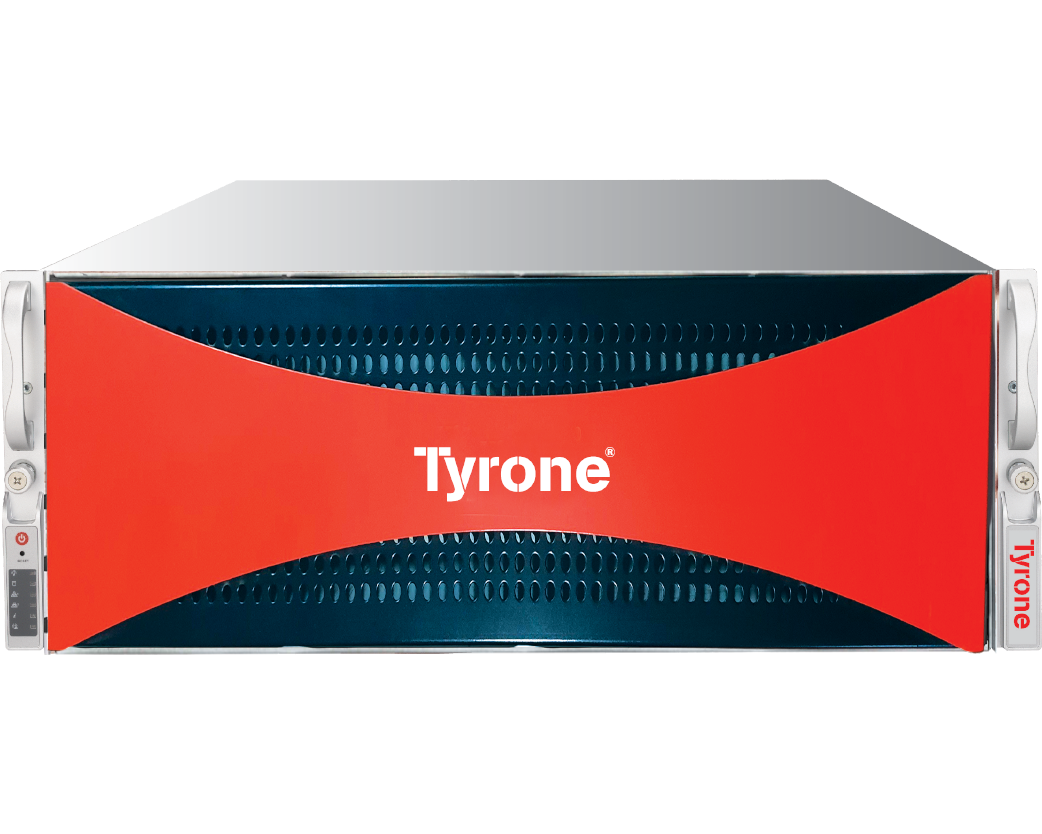

Verta D4ZC-24D

The era of having multiple units for different storage needs is passing, as diverse storage products prevent optimum utilization and can be difficult to manage. VERTA series from Tyrone Systems, consolidates all your storage requirements

    Supports a variety of File & Block protocol, client systems & different configurations for host connectivity.
  • Dual-redundant Controller 4U 24-bay Form Factor Intel Xeon processor (20 cores per controller).
  • 128GB DDR4 ECC memory (per controller)
  • SMB, NFS, AFS, FTP file protocol, iSCSI Target, FC Target, SRP Target block ptotocols.
  • Supported Windows, MAC OS, Linux, FreeBSD, Solaris.
  • Web based GUI for management,Hardware monitoring.
  • 4U Max Expension , SATA/SAS HDD/SSD,24 LFF/SFF HDD Bays.
  • Bundled: 2 10G(SPF+) Ethernet ports (per controller) , 1 x Management port (per controller).
  • Optional Add-ons

  • 4 or 8 GbE (RJ45) Ethernet ports (SMB/NFS/FTP/AFP/iSCSI) (per controller).
  • 4 10G (SFP+/RJ45) Ethernet ports (SMB/NFS/FTP/AFP/iSCSI) (per controller).
  • 4 25G (SFP28) Ethernet ports (SMB/NFS/FTP/AFP/iSCSI) (per controller).
  • 2 100G (QSFP) Ethernet ports (SMB/NFS/FTP/AFP/iSCSI) (per controller).
  • 2 or 4 16G Fibre-channel ports (FCP) (per controller).
  • 2 100G (QSFP) InfiniBand ports (SRP or IPoverIB) (per controller).
  • Supports SSD Caching (Optional upgrade), Built-in Snapshot with rollback Snapshot, High Availability, File System with Journaling support, Inbuilt user authentication, Support for Volume Replication De duplication & Compression (optional upgrade )
  • 1300W 1+1 redundant power supply 80+ Platinum.
Features Detailed Specification
Form Factor 4U 24-bay
Controller Dual-redundant
System Memory (per node) 12 x DIMM slots support: ( Per Controler ) 2666/2400MHz RDIMM/LRDIMM
Host Board Onboard host ports: 2 10G(SPF+) Ethernet ports(Per controller); 1 x Mgmt port(Per Controller)
  • - 2 or 4 GbE (RJ45) Ethernet ports (SMB/NFS/FTP/AFP/iSCSI)
  • - 2 or 4 10G (SFP+/RJ45) Ethernet ports (SMB/NFS/FTP/AFP/iSCSI)
  • - 2 25G (SFP28) Ethernet ports (SMB/NFS/FTP/AFP/iSCSI)
  • - 2 100G (QSFP) Ethernet ports (SMB/NFS/FTP/AFP/iSCSI
  • - 2 or 4 16G Fibre-channel ports (FCP)
  • - 2 100G (QSFP) InfiniBand ports (SRP or IPoverIB)"
Max. Drives Number Up to 240 HDDs/SSDs using add-on JBODs
Drive Interface 12Gb/s SAS
Supported Drives SAS/SATA LFF/SFF HDDs/SSDs
Drive Advanced Features S.M.A.R.T. support
RAID Options RAID 0,1,5,6,10,50 & 60
Advanced Features Default software features include:
  • - Snapshot: 64 per source volume, 128 per system
  • - Remote replication (file-level)
  • Optional features: SSD cache
OS Support Windows, Linux, MAC OS, FreeBSD, Solaris
Protocol Support File-level protocol: SMB, NFS, FTP, AFP Block-level protocol: iSCSI, FCP, SRP
Management User account management
  • - ADS - Web-based management UI
  • - NIS - System Health monitoring
Notification Email, SNMP
Availability and Reliability Redundant, hot-swappable hardware modules
Power Supply Unit 1300W 1+1 redundant power supply 80+ Platinum
Environmental Specifications Storage temp : -10ºC ~-60ºC / Op. temp : 0ºC~ 35ºC / Storage op. humidity : 5%~95%
Packaging Size (W x D x H) 17.2" (438 mm) x 27.7" (705 mm) x 6.8" (174.5 mm)
Weight (without HDDs) 57.00 kg
Mounting Standard : 28" slide rail
