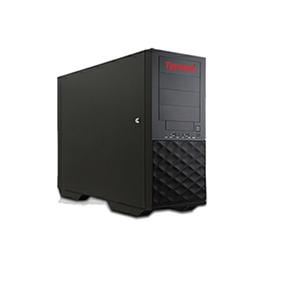

Camarero DS400TN-55R Contact Us @
Bookmark and Share
2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors.Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s
Intel® C621 "
Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots;Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);
"4 PCI-E 3.0 x16,2 PCI-E 3.0 x8,M.2 Interface: PCI-E 3.0 x4,M.2 Form Factor: 2260, 2280, 22110,M.2 Key: M-Key, 2 PCI-E 3.0 NVMe x4 Internal Port(s)"
1 VGA port
Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Dual LAN with GbE from C621
3 x 5.25" bays to 4 x hot-plug SAS/SATA 12G LFF bays
550/1200W Redundant Power Supply
Front:120 x 25 mm x1 PWM Fan, Rear: 120 x 25 mm x1 PWM Fan

Processor/Cache
Processor
"2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s"
Chipset
Chipset Intel® C246
System Memory
Memory Capacity "4 PCI-E 3.0 x16,2 PCI-E 3.0 x8,M.2 Interface: PCI-E 3.0 x4,M.2 Form Factor: 2260, 2280, 22110,M.2 Key: M-Key, 2 PCI-E 3.0 NVMe x4 Internal Port(s)"
Expansion Slots
PCI-Express "Slot 1: Gen3 x16 FHHL,Slot 2: Gen3 x8 FHFL,Slot 3: Gen3 x16 FHFL,Slot 4: Gen3 x16 FHHL, Slot 5: Gen3 x16 FHFL Slot 6: Gen3 x8 FHFL,Slot 7: Gen3 x8 LP (Optional),Slot 8: Gen3 x8 LP (Optional),Slot 9: Gen3 x8 LP (Optional) Slot 10: Gen3 x8 LP (Optional)"
Integrated On-Board
SATA Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
LAN 2 RJ45 Gigabit Ethernet LAN ports
Add-on Options
Raid Card Optional
Optical Drive Optional
Front Panel
Front Panel Front Control Panel Power Switch, System Reset
Buttons Power On/Off button
Drive bays
HDD Drives 4 fixed 3.5" drive bays. Enterprise SATA HDD only recommended
Peripheral Drives Optional
Power Supply
Power Supply 550/1200W Redundant Power Supply
Cooling System
Cooling System Front:120 x 25 mm x1 PWM Fan, Rear: 120 x 25 mm x1 PWM Fan
Form Factor
Form Factor Tower/Convertable/5U Rackmount
Dimensions: 560 x 200 x 430 mm (22"" x 7.9"" x 16.9"")

Specifications subject to change without notice. Picture used for representation purpose only and the actual product may differ in looks All other brands and names are the property of their respective owners
