Camarero JS44E2R-444R Contact Us @
Bookmark and Share

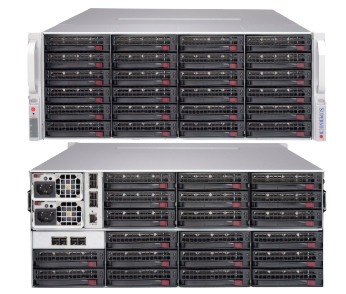

&Nbsp; Double-sided High Density JBOD Storage Enclosure
&Nbsp; 44x (24 front + 20 rear) 3.5" hot-swap SAS drive bays supporting SAS3/2 HDDs with 12Gbps throughput
Redundant 1000W/1200W/1280W Redundant Power Supply
7x 8cm (middle) hot-swap redundant cooling fans
SAS3 (12Gbps) backplane with dual expanders supports SAS3 drives for load balancing and redundancy
JBOD Power Control Board with IPMI for remote monitor and power on-off
8x External mini SAS HD (SFF 8644) connectivity and IPMI RJ45 port
Palletized packaging for easy shipping and handling

Backplane
Backplane
24-port 4U SAS3 12Gbps dual-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD,20-port 4U (SC847E2C JBOD) SAS3 12Gbps dual-expander backplane (rear), support up to 20x 3.5-inch SAS3/SATA3 HDD/SSD
Front Panel
LED Indicators 1 Network Activity LEDs,Fan Fail/System Over Heat LED,Power Status LED,Power Fail LED,Unit Identification (UID) LED
Buttons Power On/Off button,System Reset Button,Unit Identification (UID) button
Drive bays
HDD bays 44 x 3.5" hot-swap HDD bays for JBOD solution
Power Supply
Power Supply Redundant 1000W/1200W/1280W Redundant Power Supply
Cooling System
Cooling System 7 x 8cm hot-swap redundant PWM cooling fan(s)
Form Factor
Form Factor 4U SAS3 JBOD storage chassis
Height 7" (178 mm),Width 17.2" (437 mm),Depth 27.5" (699 mm)

Specifications subject to change without notice. Picture used for representation purpose only and the actual product may differ in looks All other brands and names are the property of their respective owners
