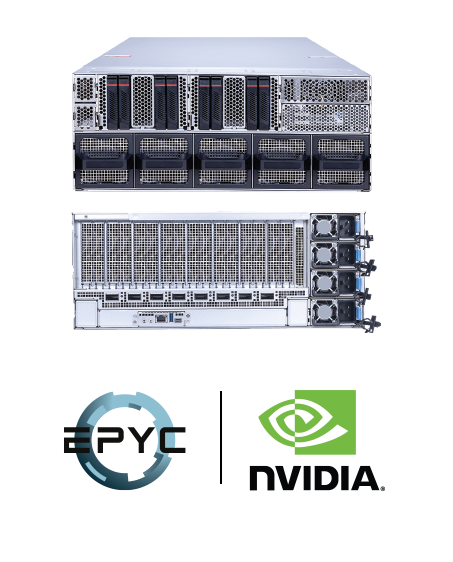

A high-density AMD EPYC™ 9005-series platform optimized for AI inference, small-model training, and fine-tuning, delivering PCIe Gen6 scalability, ultra-fast 400G NVIDIA ConnectX-8 networking, massive DDR5 memory bandwidth, and Titanium-class redundant power with hardware Root of Trust.
•
Support dual AMD EPYC™ 9005 series processors with high-core-count architecture
•
Supports 24 x DDR5 RDIMM Expandable Memory
•
9 x PCIe Expansion Slots
•
8 x 400G QSFP112 ports with NVIDIA ConnectX-8 chipsets
•
Integrated ASPEED BMC Controller
•
Dual BIOS & BMC
•
Supports IPMI, Redfish, remote KVM, and virtual media
•
80+ Titanium CRPS Power Supply for high efficiency and redundancy
•
Enhanced Security with TPM 2.0 and Chassis Intrusion detection
•
Hardware Root of Trust (RoT)
Processor/Cache
Processor
Dual AMD EPYC™ 9005 Series processor,Upto 500W TDP, (LGA 6096)
GPUs
GPUs
H200NVL RTX Pro 6000 BSE
System Memory
Memory Capacity
24 x DDR5 DIMM Slots, 12 memory channels (1DPC), RDIMM/RDIMM-3DS Max. Frequency : 6400MT/s Max. Capacity per DIMM: 256GB Max System Memory : 6TB
Expansion Slots
PCI-Express
8 x PCIe 6.0 x16 FHFL dual wide slot 1 x PCIe 5.0 x16 FHFL single wide slot
Drive bays
Drive bays
8 x 2.5" U.2 PCIe 5.0 x4 Hot Swap NVMe drive bays 2 x 2280/22110 PCIe 3.0 x2 NVMe M.2 drive bays
Ports
Ports
1 x 1000Base-T Dedicated Server Management Port (Rear) 1 x USB 3.0 Type-A Port (Rear) 1 x Mini-DP Display Port (Rear) 8 x 400G QSFP112 ports with NVIDIA ConnectX-8 (Rear)
Indicators/LEDs
Indicators/LEDs
1 x Power button with LED (Rear) 1 x UID button with LED (Rear)
Security
Security
Chassis intrusion TPM 2.0 (Onboard) Hardware Root of Trust (RoT)
Power Supply
Power Supply
(3+1) 3200W 80+ CRPS Titanium Redundant Power Supply
Non-operating Relative Humidity: 5% to 85% (non-condensing)
Form Factor
Form Factor
4U Rackmount
Dimensions
438mm (W) x 175mm (H) x 800mm (D)
Specifications subject to change without notice. Picture used for representation purpose only and the actual product may differ in looks All other brands and names are the property of their respective owners
