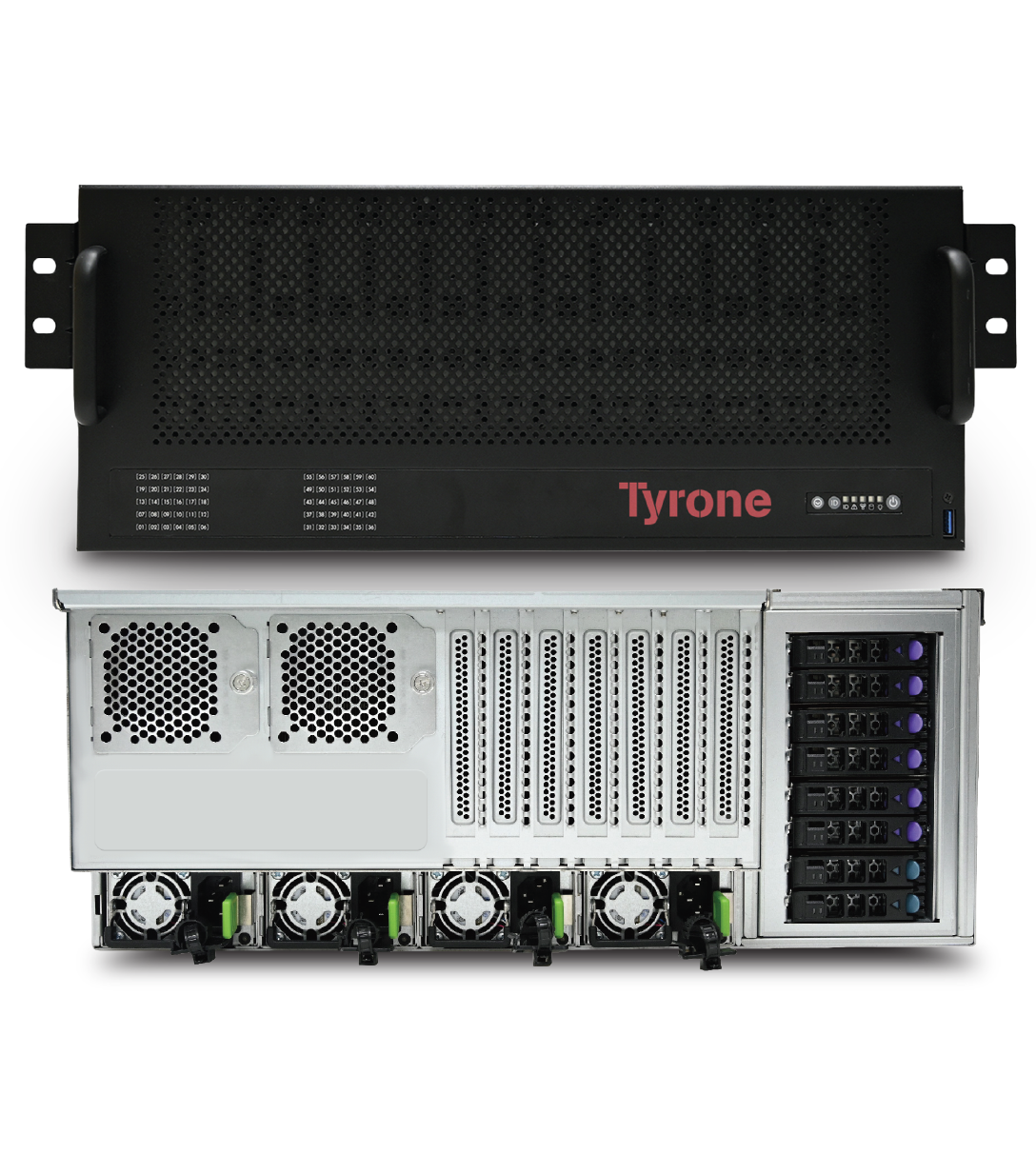

The MSI300A3S-468 storage Server is designed for scalable, high-throughput storage deployments in data center and edge environments. It supports modular expansion, Intel’s 6th Gen based Single CPU, and flexible I/O fabrics to deliver predictable performance at scale. Leveraging state-of-the-art PCIe Gen5 integration and multi-tier storage architecture, the system enables seamless scaling from capacity-centric workloads to latency-sensitive access patterns.
•
Supports Single Intel® Xeon® 6700E, 6500P and 6700P-Series Processors
•
Supports 8 x DDR5 RDIMM Expandable Memory
•
4 x PCIe 5.0 x16 Expansion slots
•
Integrated ASPEED BMC Controller
•
Supports IPMI, Redfish, remote KVM, and virtual media
•
Enhanced Security with TPM 2.0 and Chassis Intrusion
•
2+2 80+ Titanium Redundant Power Supply
Processor/Cache
Processor
Single Intel® Xeon® 6700E, 6500P and 6700P-Series Processors, Upto 250W TDP(LGA 4710 (Socket E2)
System Memory
Memory Capacity
8 DDR5 DIMM slots, 8 Channels (1DPC), DDR5 288-pin RDIMM, RDIMM : 256GB (6400MT/s), MCRDIMM: 64GB (8000MT/s) Max. Capacity per DIMM: 256GB Max System Memory : 2TB
Expansion Slots
PCI-Express
4 x PCIe 5.0 x16 FHHL slots(R1S CPU required to enable all Slots, otherwise only 3 will be working) 6 x PCIe 5.0 x8 MCIO 8i connectors(R1S CPU required to enable all Connector, otherwise only 2 will be working)
Ports
Ports
1 x 1000Base-T Dedicated Server Management Port (Rear) 2 x 10GbE (RJ45) by Intel X710-AT2 (Rear) 1 x DB-15 VGA connector (Rear) 1 x DB9 COM connector (Rear) 1 x 2.1 ch audio Ports (Rear) 2 x USB 3.2 Gen 1 Type-A Port (Rear) 1 x USB 3.2 Gen 1 Type-A port (Front)
Indicators/Button
Indicators/Button
1 x Power Button (Front) 1 x UID Button with LED (Front/Rear) 1 x System Alert LED (Front) 1 x System Reset Button (Front) 1 x LAN LED (Front) 1 x Drive Activity LED (Front) 1 x Power Status LED (Front)
Drive bays
Drive bays
Supports 60 x hot-swap 2.5"/3.5" SAS/SATA drive bays(Top) Supports 6 x 2.5" NVMe + 2 x 2.5" SATA drive bays (Rear) 2 x 2280/22110 PCIe 5.0 x2 NVMe M.2 ports (On Board)
Security
Security
Chassis intrusion TPM 2.0
Power Supply
Power Supply
(2 + 2) 800W 80+ Titanium Redundant Power Supply
Environment
Environment
System Operating Temperature: 0°C ~ 35°C Non-operating Temperature: -20°C ~ 70°C Non-operating Relative Humidity: 5% to 85% (non-condensing)
Form Factor
Form Factor
4U Rackmount
Dimensions
Dimensions: 434mm (W) x 176mm (H) x 853mm (D)
Specifications subject to change without notice. Picture used for representation purpose only and the actual product may differ in looks All other brands and names are the property of their respective owners
