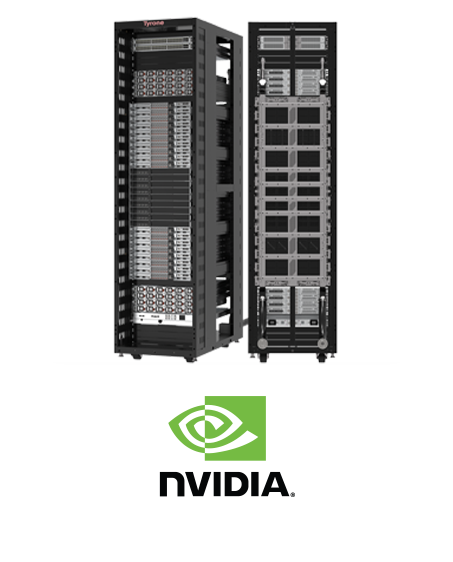

High-density liquid-cooled AI rack solution featuring 72 NVIDIA Blackwell Ultra GPUs and 36 NVIDIA Grace CPUs for large-scale AI training and inference.
Extreme throughput with 800Gb/s high-speed network interfaces
•
Advanced thermal efficiency using direct-to-chip liquid cooling
•
Fully integrated, turnkey 48U infrastructure tailored for large-scale AI
•
Robust out-of-band monitoring and remote management via ASPEED AST2600
•
Enterprise-grade hardware security backed by TPM 2.0 and ERoT
Processor/Cache
Processor
36 x NVIDIA Grace CPUs 2 x NVIDIA Grace CPUs, TDP up to 300W (Per Compute) Chipset: NVIDIA Grace Processor (72 ARM Neoverse V2 cores)
System Memory
Memory Capacity
CPU Memory: 17TB LPDDR5X with ECC Memory Bandwidth: Up to 14 TB/s GPU Memory: 20TB HBM3e Memory Bandwidth: Up to 576 TB/s
GPU
GPU
72 NVIDIA BlackwellTM Ultra GPUs 4 x NVIDIA BlackwellTM Ultra GPUs, TDP up to 1400W (Per Compute)
NIC
NIC
72 x ConnectX®-8 SuperNICs ports, 18 x NVIDIA BlueField®-3 DPUs Per Rack 4 x NVIDIA ConnectX®-8 SuperNICTM ports (800Gb/s) Per Compute 1 x NVIDIA BlueField®-3 DPUs (Dual Port 400Gb/s) Per Compute 1 x I210 1GbE port (Per Compute)
Drive bays
Drive bays
4x E1.s NVMe SSD 1x M.2 2280/22110 NVMe SSD
Display
Display
1x Mini-DP Port
Management
Management
2 x SN2201 Switch (OOB) 1 x RJ45 connector for dedicated IPMI / BMC management port (Per Compute)
Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)
Ports
Ports
1 x 1000Base-T Dedicated Server Management Port (Rear) 1 x RJ45 PXE 1G (Front) 1 x Mini Display Port (Front) 2 x Liquid Inlet/Outlet QD (Rear) 1 x USB 3.2 Type-A port (Front)
Indicators
Indicators
1 x Power button with LED (Front) 1 x Reset button (Front) 2 x LAN LED (Front) 1 x NVLink LED (Front) 1 x UID button with LED (Front) 1 x Alarm Status LED (Front)
Cooling System
Cooling System
Cooling Architecture: Direct-to-chip liquid cooling 8 × Hot Swappable 50 × 56 mm PWM-Controlled Cooling Fans (per compute)
Power Supply
Power Supply
(4+4) 33kW Power shelve (Default) (4+2) 33kW Power shelf (Optional) IPower shelf: 6 x 5.5kW Hot swappable PSU each power shelf
Form Factor
Form Factor
48U MGX Rack
Dimensions
Product Dimensions : 600mm (W) x 2296mm (H) x 1200mm (D) Packing Dimensions : 1220mm (W) x 2500mm (H) x 1680mm (D) Net Weight: 1578 Kg | Gross Weight: 1877 Kg
Specifications subject to change without notice. Picture used for representation purpose only and the actual product may differ in looks All other brands and names are the property of their respective owners
