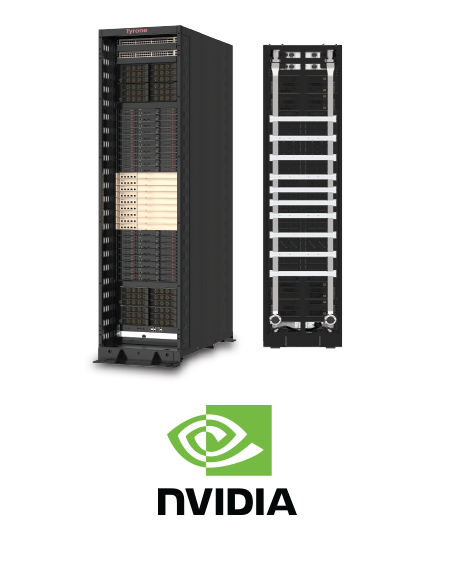

Enterprise rack-scale AI system combining 72 NVIDIA Rubin GPUs and 36 NVIDIA Vera CPUs for massive training and inference workloads.
•
Massive AI parallel compute capability powered by 72 Rubin GPUs
•
High-performance enterprise host processing driven by 36 Vera CPUs
•
Next-gen, ultra-fast interconnect fabric for seamless GPU-to-GPU communication
•
Lightning-fast memory throughput delivering massive capacity via HBM4
•
Unified, high-density AI infrastructure built for enterprise-scale workloads
•
Advanced liquid thermal management designed for maximum operational efficiency
•
Low-latency, high-bandwidth network integration for massive data throughput
•
Hardware-level security enforcement featuring TPM 2.0 and ERoT
Processor/Cache
Processor
36 x NVIDIA Vera CPUs 2 x NVIDIA VeraTM CPUs, TDP up to 450W per CPU (Per Compute) Chipset: NVIDIA Vera processor (88 custom Arm Olympus cores)
System Memory
Memory Capacity
CPU Memory: 54 TB LPDDR5X Memory Bandwidth: Up to 32.4 TB/s GPU Memory : 20.7 TB HBM4 Memory Bandwidth: Up to 1400 TB/s
GPU
GPU
72 x NVIDIA RubinTMGPUs 4 x NVIDIA RubinTM GPUs, TDP up to 2300W per GPU (Per Compute)
NIC
NIC
72 x ConnectX®-9 SuperNICs ports, 18 x NVIDIA BlueField®-4 DPUs Per Rack 4 x NVIDIA ConnectX®-9 SuperNICTM ports (Dual 800Gb/s) Per Compute 1 x NVIDIA BlueField®-4 DPUs (Dual Port 400Gb/s) Per Compute 1 x I210 1GbE port (Per Compute)
Drive bays
Drive bays
4x E1.s NVMe Gen 6.0 drive bays 1x E1.s NVMe Gen 5.0 boot SSD
Display
Display
1x Mini-DP Port
Management
Management
2 x SN2201 Switch (OOB) 1 x RJ45 connector for dedicated IPMI / BMC management port (Per Compute)
Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)
Ports
Ports
1 x 1000Base-T Dedicated Server Management Port (Front) 1 x RJ45 PXE 1G (Front) 1 x Mini Display Port (Front) 2 x Liquid Inlet/Outlet QD (Rear) 1 x USB 3.2 Type-A port (Front)
Indicators
Indicators
1 x Power button with LED (Front) 1 x Reset button (Front) 2 x LAN LED (Front) 1 x NVLink LED (Front) 1 x UID button with LED (Front)
(3+1) 3U 110W Power Shelves (Default) Power Supply Unit: AC 415~480 VAC (3P+PE Δ) Input Voltage (Power Shelves): AC 415~480 VAC
Form Factor
Form Factor
48U MGX Rack Solution
Dimensions
Product Dimensions : 600mm (W) x 2296mm (H) x 1200mm (D) Packing Dimensions : 1220mm (W) x 2500mm (H) x 1680mm (D) Net Weight: 1578 Kg | Gross Weight: 1877 Kg
Specifications subject to change without notice. Picture used for representation purpose only and the actual product may differ in looks All other brands and names are the property of their respective owners
