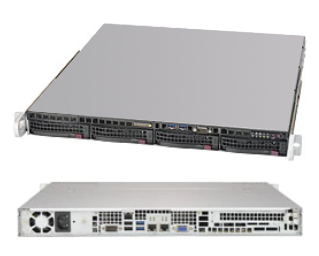

Camarero SS400TR-14LT Contact Us @
Bookmark and Share
"2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,Single Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 165W TDP,Up to 28 cores Note : BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)"
Intel® C622
"Up to 1.5TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 1.5TB 3DS ECC LRDIMM, DDR4-2933MHz, in 6 DIMM slots; Up to 1TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake Only)"
"PCI-E : 2 PCI-E 3.0 x16 ,1 PCI-E 3.0 x8, M.2 NGFF connector, M.2 Interface: PCI-E 3.0 x4, Form Factor: 2242, 2280 Key: M-Key, Double Height Connector"
2 10G SFP+
12 SATA3 (6Gbps) via C622
Supports 12V DC power input
I/O: 1 VGA, 2 COM, 1 TPM header
5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers)
4 x 3.5" hot-swap SAS/SATA
4 x 40x28mm PWM fan(s), Optional 2 x 40x28mm PWM fan(s)
350W Multi-output power supply Platinum level

Processor/Cache
Processor
"2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,Single Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 165W TDP,Up to 28 cores Note : BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)"
Chipset
Chipset Intel® C622
System Memory
Memory Capacity "Up to 1.5TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 1.5TB 3DS ECC LRDIMM, DDR4-2933MHz, in 6 DIMM slots; Up to 1TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake Only)"
Expansion Slots
PCI-Express "PCI-E : 2 PCI-E 3.0 x16 ,1 PCI-E 3.0 x8, M.2 NGFF connector, M.2 Interface: PCI-E 3.0 x4, Form Factor: 2242, 2280 Key: M-Key, Double Height Connector"
Integrated On-Board
SATA Intel® C622 controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
LAN 2 10G SFP+ LAN ports
Add-on Options
Raid Card Optional
Optical Drive Optional
Front Panel
LED Indicators LEDs , 2 Network Activity LEDs, HDD activity LED, Power Status LED, System Information LED
Buttons Power On/Off button,System Reset button
Drive bays
HDD Drives 4 x 3.5" hot-swap SAS/SATA
Peripheral Bays Optional 1 x Slim DVD-ROM Drive
Power Supply
Power Supply 350W Multi-output power supply Platinum level
Cooling System
Cooling System 4 x 40x28mm PWM fan(s), Optional 2 x 40x28mm PWM fan(s)
Form Factor
Form Factor 1U Rackmount
"Dimensions:Height : 1.7"" (43 mm), Width : 17.2"" (437 mm), Depth : 19.85"" (503 mm) "

Specifications subject to change without notice. Picture used for representation purpose only and the actual product may differ in looks All other brands and names are the property of their respective owners
