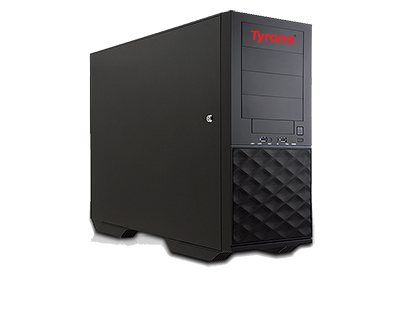

Camarero SS400TR-45LR Contact Us @
Bookmark and Share
Single socket H4 (LGA 1151) supports,Intel® Xeon® processor E3-1200 v5/v6,Intel® 6th/7th Gen. Core™ i7/i5/i3 series,Intel® Celeron® and Intel® Pentium®
Intel® C236 Express PCH
Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots
2 PCI-E 3.0 x16 (run at 16/NA or 8/8), 3 PCI-E 3.0 x1 (in x4), and 2 5V PCI 32-bit slots
Single GbE LAN with Intel® i210-AT,Single GbE LAN with Intel® i219LM
8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCI-E M.2 (support PCI-E x4 only, 2242/2260/2280)
I/O: 2 COM, TPM header
6 USB 3.0 (2 rear + 4 via header(s)),8 USB 2.0 (2 rear + 6 via header(s)),2 USB 3.1 (10Gbps, rear)
External:5.25" x 4, 3.5" x 1,Internal: 3.5" or 2.5" x 5
550/1200 Redundant Power Supply, 80 Plus platinum
Front:120 x 25 mm x1 PWM Fan, Rear: 120 x 25 mm x1 PWM Fan

Processor/Cache
Processor
Single socket H4 (LGA 1151) supports,Intel® Xeon® processor E3-1200 v5/v6,Intel® 6th/7th Gen. Core™ i7/i5/i3 series,Intel® Celeron® and Intel® Pentium®
Chipset
Chipset Intel® C236 Express PCH
System Memory
Memory Capacity Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
Expansion Slots
PCI-Express 2 PCI-E 3.0 x16 (run at 16/NA or 8/8), 3 PCI-E 3.0 x1 (in x4), and 2 5V PCI 32-bit slots
Integrated On-Board
SATA SATA3 (6Gbps); RAID 0, 1, 5, 10
Add-on Options
Raid card Raid Card:Optional
Optical Drive None
Front Panel
LED Indicators Front Panel:Front Control Panel Power Switch, System Reset
Buttons Buttons: Power On/Off button
Drive bays
HDD bays External:5.25" x 4, 3.5" x 1,Internal: 3.5" or 2.5" x 5
M.2 Peripheral Drives:Optional
Power Supply
Power Supply 550/1200 Redundant Power Supply, 80 Plus platinum
Cooling System
Cooling System Front:120 x 25 mm x1 PWM Fan, Rear: 120 x 25 mm x1 PWM Fan
Form Factor
Form Factor Tower/Convertable/ Rackmount
560 x 200 x 430 mm (22" x 7.9" x 16.9")

Specifications subject to change without notice. Picture used for representation purpose only and the actual product may differ in looks All other brands and names are the property of their respective owners
