50-200 Cameras
Entry Level
Increase performance and ability to scale with an entry - level single socket 1U rack server.
200-500 Cameras
Professional Level
2U rack servers that offers an ideal balance of resources and affordability.
500-1000 Cameras
Enterprise Level
This high density server offers 24 hot swappable drive bays which results in low foot print in the server room.
Tyrone Recorder Servers : 50-200 cameras
- Tyrone Recorder Servers for Small-to medium sized businesses
- For remote access to the archive, and plug and play convenience
- Works in failover mode to provide high availability and redundancy

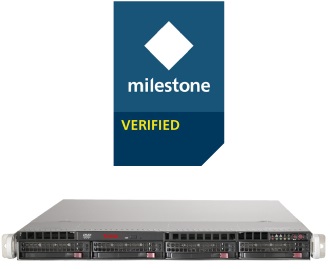

 1U Tyrone SS400TR-14
|
1U Tyrone SS300TR-14R
|
 1U Tyrone SS400TR-14RL
|
|
| Processor(s) |
1U Tyrone SS400TR-14 Single Socket E3-1200 |
1U Tyrone SS300TR-14R Single Socket E5-2600 |
1U Tyrone SS400TR-14RL Single Socket Intel® Xeon® Scalable processor |
| Chipset |
1U Tyrone SS400TR-14 Intel® C236 chipset |
1U Tyrone SS300TR-14R Intel® C612 chipset |
1U Tyrone SS400TR-14RL Intel® C621 chipset |
| Memory |
1U Tyrone SS400TR-14 Up to 64GB(4 DIMMs) |
1U Tyrone SS300TR-14R Up to 1TB(8 DIMMs) |
1U Tyrone SS400TR-14RL Up to 1.5 TB(6 DIMMs) |
| Hard Drive Bays |
1U Tyrone SS400TR-14 4 Hot-swap 3.5" SATA3 bays |
1U Tyrone SS300TR-14R 4 Hot-swap 3.5" SATA3 bays |
1U Tyrone SS400TR-14RL 4 Hot-swap 3.5" SATA3 bays |
| Network |
1U Tyrone SS400TR-14 2 RJ45 Gbe LAN ports |
1U Tyrone SS300TR-14R 2 RJ45 Gbe LAN ports |
1U Tyrone SS400TR-14RL 2 RJ45 Gbe LAN ports |
| Slots |
1U Tyrone SS400TR-14 1 PCI-E 3.0 x8 (in x16) 1 M.2 connector |
1U Tyrone SS300TR-14R 1x PCI-E 3.0 x16 slot |
1U Tyrone SS400TR-14RL 1x PCI-E 3.0 x16 slot |
| Chassis |
1U Tyrone SS400TR-14 1U Rackmount |
1U Tyrone SS300TR-14R 1U Rackmount |
1U Tyrone SS400TR-14RL 1U Rackmount |
| Power Supply |
1U Tyrone SS400TR-14 Single 350 W |
1U Tyrone SS300TR-14R Dual 400W (1+1) |
1U Tyrone SS400TR-14RL Dual 400W |
| Datasheet | Datasheet | Datasheet |
Tyrone Recorder Servers : 200-500 cameras
- Midsized arrangement with 200 to 500 cameras to manage with simultaneous video streams
- Works in failover mode to provide high availability and redundancy
 2U Tyrone DS3007R-212RT
|
 1U Tyrone DS400TW-18RL
|
|
| Processor(s) |
2U Tyrone DS3007R-212RT Dual Socket E5-2600 |
1U Tyrone DS400TW-18RL Dual Socket Intel® Xeon® Scalable processor |
| Chipset |
2U Tyrone DS3007R-212RT Intel® C612 chipset |
1U Tyrone DS400TW-18RL Intel® C621 chipset |
| Memory |
2U Tyrone DS3007R-212RT Up to 2TB(16 DIMMs) |
1U Tyrone DS400TW-18RL Up to 3TB(12 DIMMs) |
| Hard Drive Bays |
2U Tyrone DS3007R-212RT 12x 3.5" Hot-swap SAS3/SATA3 |
1U Tyrone DS400TW-18RL 8 Hot-swap 2.5" SAS/SATA drive bays |
| Network |
2U Tyrone DS3007R-212RT 2 RJ45 10GBase-T |
1U Tyrone DS400TW-18RL 2 RJ45 Gbe LAN ports |
| Slots |
2U Tyrone DS3007R-212RT 1x PCI-E 3.0 x16, 6x PCI-E 3.0 x8 |
1U Tyrone DS400TW-18RL 2 PCI-E 3.0 x16 (FHHL) slots, 1 PCI-E 3.0 x8 (LP) slot, 1 PCI-E 3.0 x16 for Add-on-Module, 1 PCI-E M.2 SSD slot |
| Chassis |
2U Tyrone DS3007R-212RT 2U Rackmount |
1U Tyrone DS400TW-18RL 1U Rackmount |
| Power Supply |
2U Tyrone DS3007R-212RT Dual 920 W |
1U Tyrone DS400TW-18RL Dual 750 W |
| Datasheet | Datasheet |
Tyrone Recorder Servers : 500-1000 cameras
- For Large-scale installations, that requires expansion flexibility & cost-effectiveness
- Offers huge drive capacity for recording and support on-demand expansion
- Offers reliable and high throughput for immediate read and write access
 2U Tyrone DS40012R-224RTL
|
|
| Processor(s) |
2U Tyrone DS40012R-224RTL Dual Socket Intel® Xeon® Scalable processor |
| Chipset |
2U Tyrone DS40012R-224RTL Intel® C622 chipset |
| Memory |
2U Tyrone DS40012R-224RTL Up to 4TB(16 DIMMs) |
| Hard Drive Bays |
2U Tyrone DS40012R-224RTL 24 Hot-swap 2.5" SAS3/SATA3 |
| Network |
2U Tyrone DS40012R-224RTL 2x 10GBase-T LAN ports |
| Slots |
2U Tyrone DS40012R-224RTL 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8 |
| Chassis |
2U Tyrone DS40012R-224RTL 2U Rackmount |
| Power Supply |
2U Tyrone DS40012R-224RTL Dual 1200 W |
| Datasheet |
Recorder Servers with Storage
- For large-scale surveillance system that require a server with more storage
- Designed to offer the highest levels of performance for IP video surveillance
- Perfect for small to large installations, Tested, validated with leading VMS
 DS4007R-436RT
|

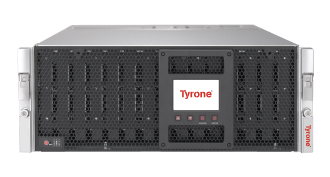

 DS40012E1-460RL
|
 DS4007R-424RT
|
|
| Processor(s) |
DS4007R-436RT Single Socket E3-1200 |
DS40012E1-460RL Dual Intel® Xeon® Scalable Processors |
DS4007R-424RT Dual Intel® Xeon® Scalable Processors |
| Chipset |
DS4007R-436RT Intel® C236 chipset |
DS40012E1-460RL Intel® C621 chipset |
DS4007R-424RT Intel® C622 chipset |
| Memory |
DS4007R-436RT Up to 64GB(4 DIMMs) |
DS40012E1-460RL Up to 6TB (24 DIMMs) |
DS4007R-424RT Up to 4TB (16 DIMMs) |
| Hard Drive Bays |
DS4007R-436RT 4 Hot-swap 3.5" SATA3 bays |
DS40012E1-460RL 60 Hot-swap 3.5" SAS3/SATA3 and 2 rear Hot-swap 2.5" drive bays |
DS4007R-424RT 24 Hot-swap 3.5" SAS3/SATA3 bays |
| Network |
DS4007R-436RT 2 RJ45 Gbe LAN ports |
DS40012E1-460RL 1 SIOM card support (flexible networking) |
DS4007R-424RT 2x 10GBase-T LAN ports |
| Slots |
DS4007R-436RT 1 PCI-E 3.0 x8 (in x16) 1 M.2 connector |
DS40012E1-460RL 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 |
DS4007R-424RT 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8 |
| Chassis |
DS4007R-436RT 1U Rackmount |
DS40012E1-460RL 4U Rackmount |
DS4007R-424RT 4U Rackmount |
| Power Supply |
DS4007R-436RT Single 350 W |
DS40012E1-460RL Dual 2000W (1+1) |
DS4007R-424RT Dual 1200 W |
| Datasheet | Datasheet | Datasheet |
